SB0330
SUPERFLEX bar strands, length, & Pontoon structure strength design, need decide
by the pontoon size, water depth, tidal, and wind & wave force calculation results.

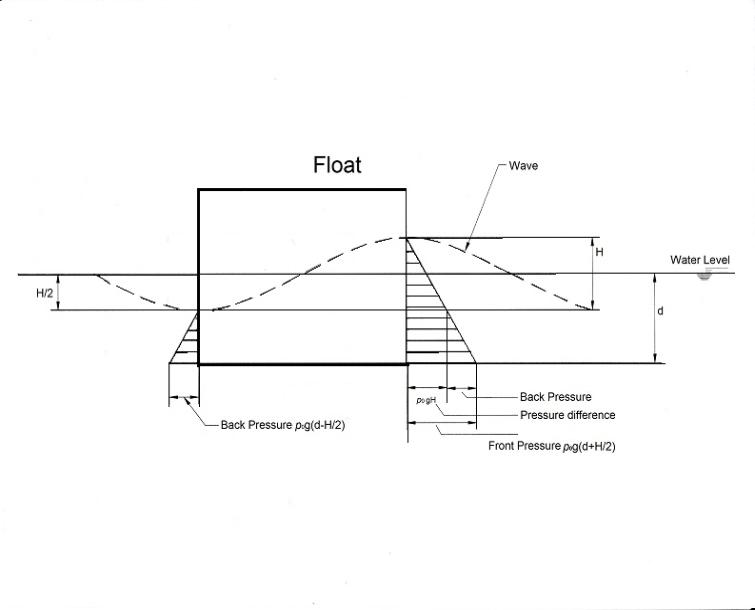

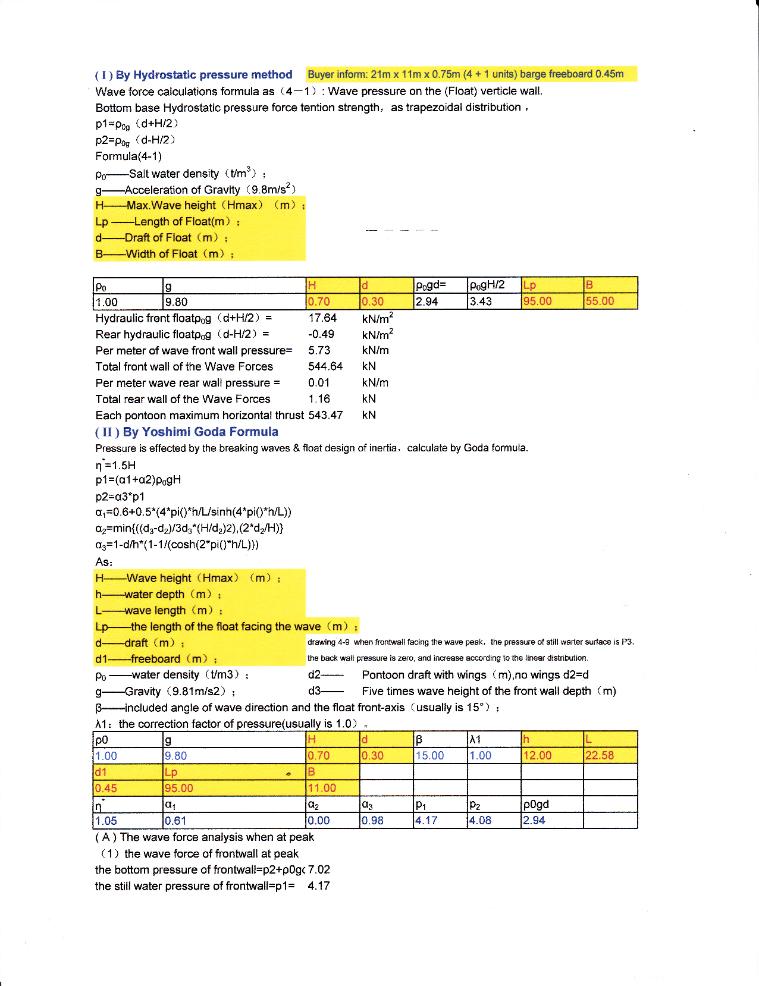

sample as follow (by Goda formular):
by the pontoon size, water depth, tidal, and wind & wave force calculation results.
sample as follow (by Goda formular):

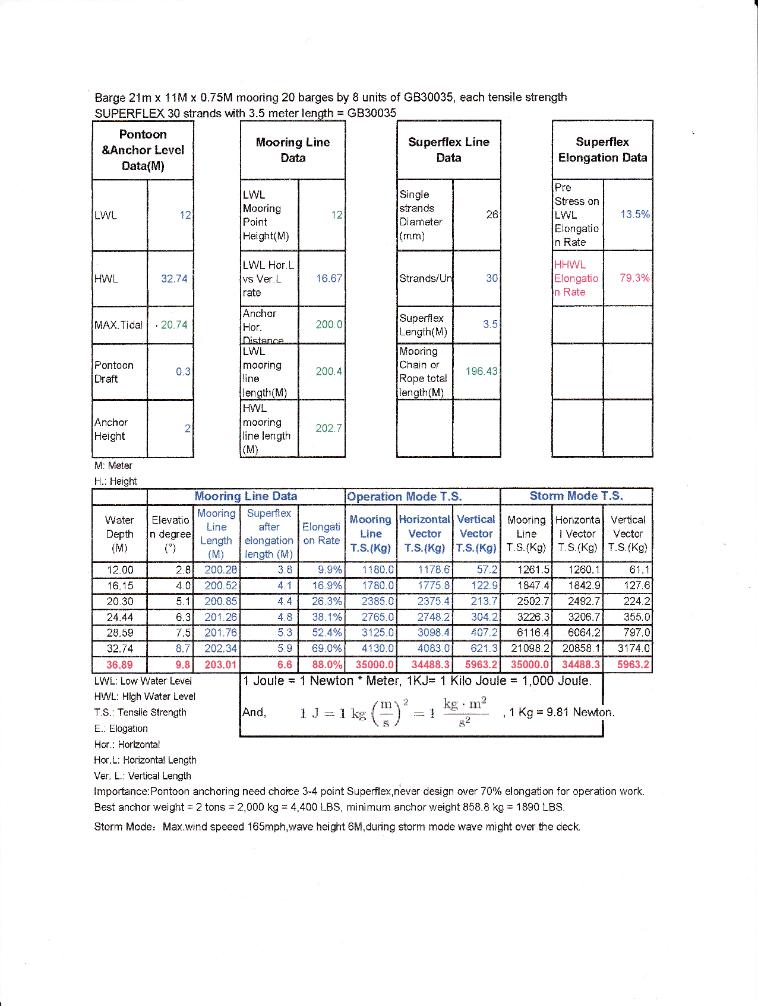

SUPFLEX Length & Strands Choice by Pontoon Wind & Wave Force Calculation & Tidal Tension Table as following

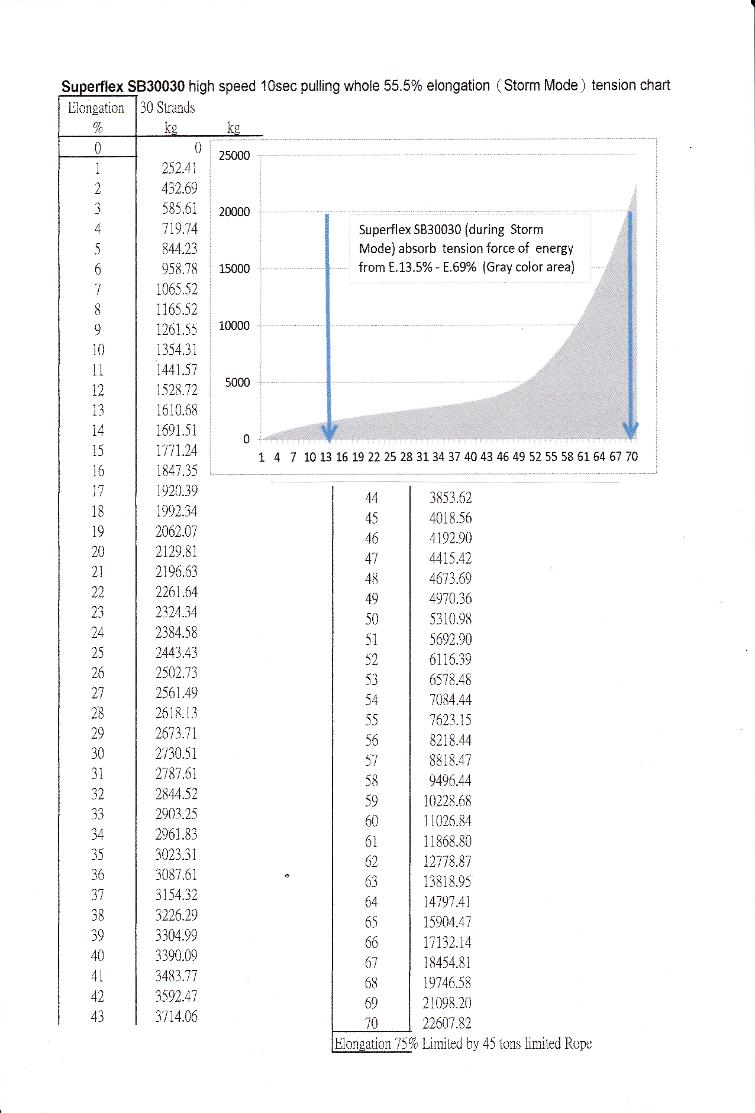

SB30030
SB30030
SB30030

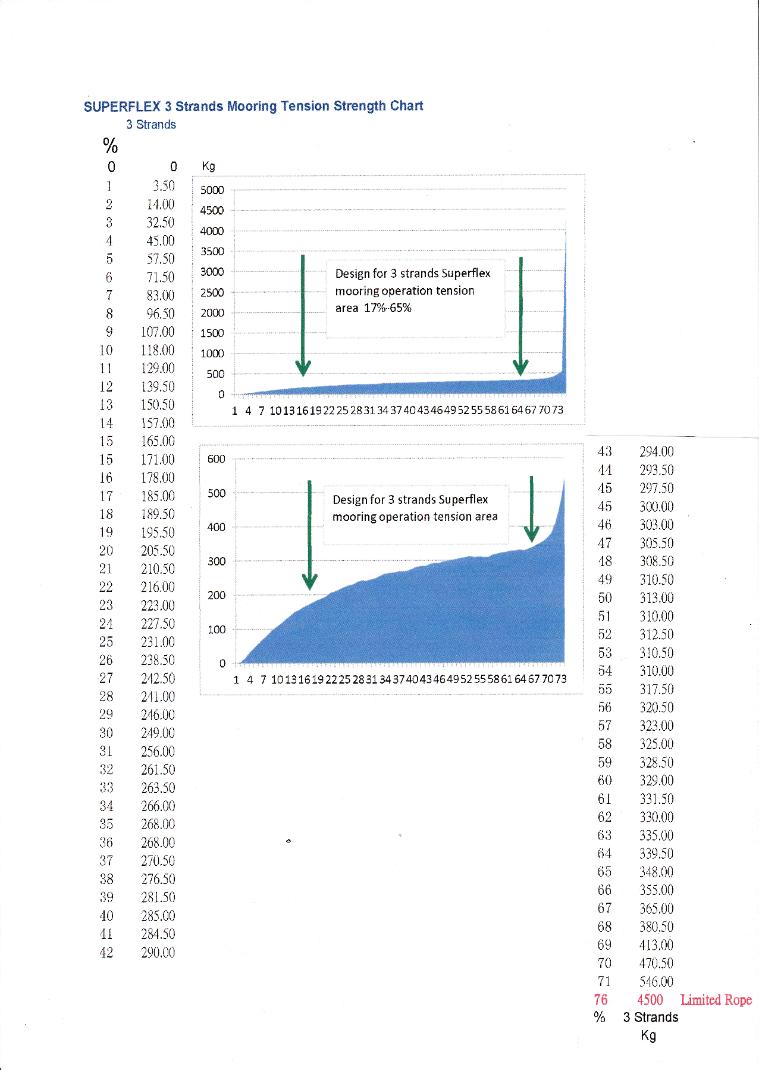

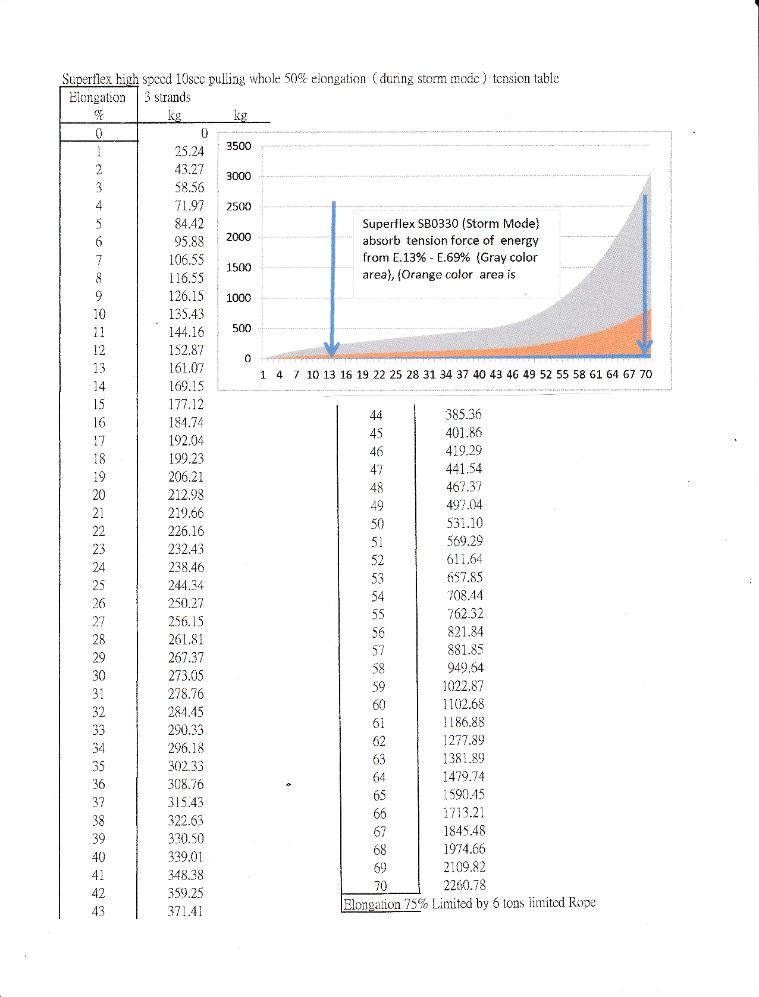

SB0330

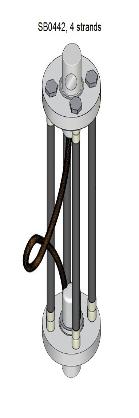

SB0442 Storm Mode tension strength

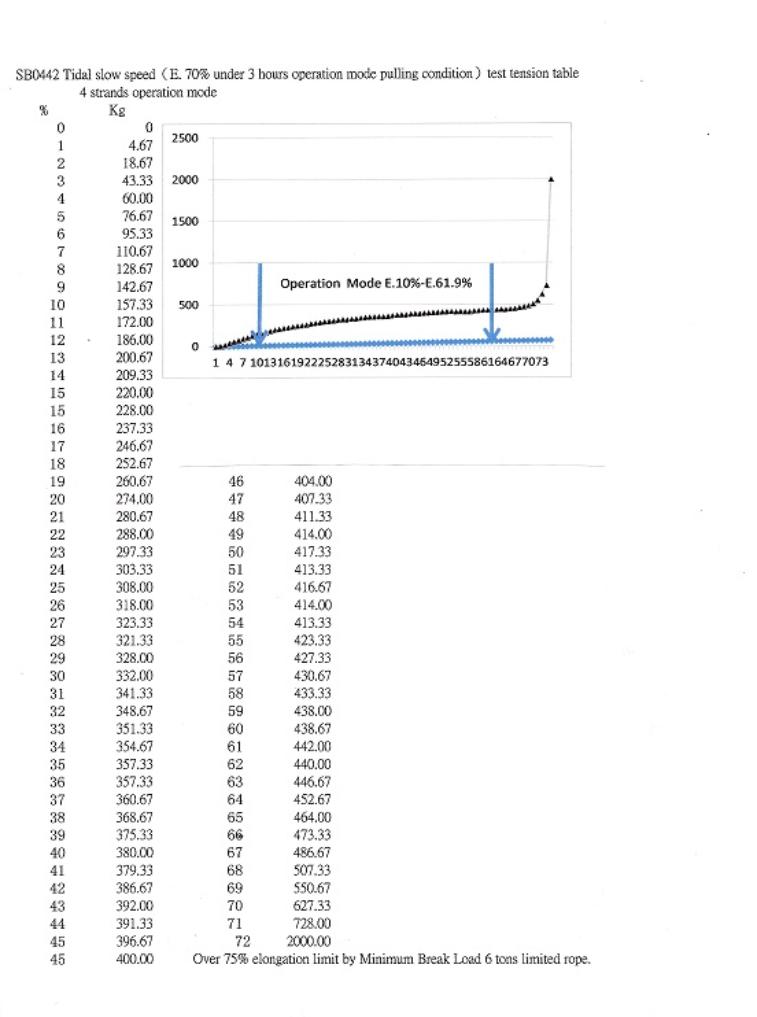

SB0442 Operation Mode tension strengthh

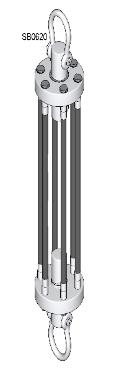

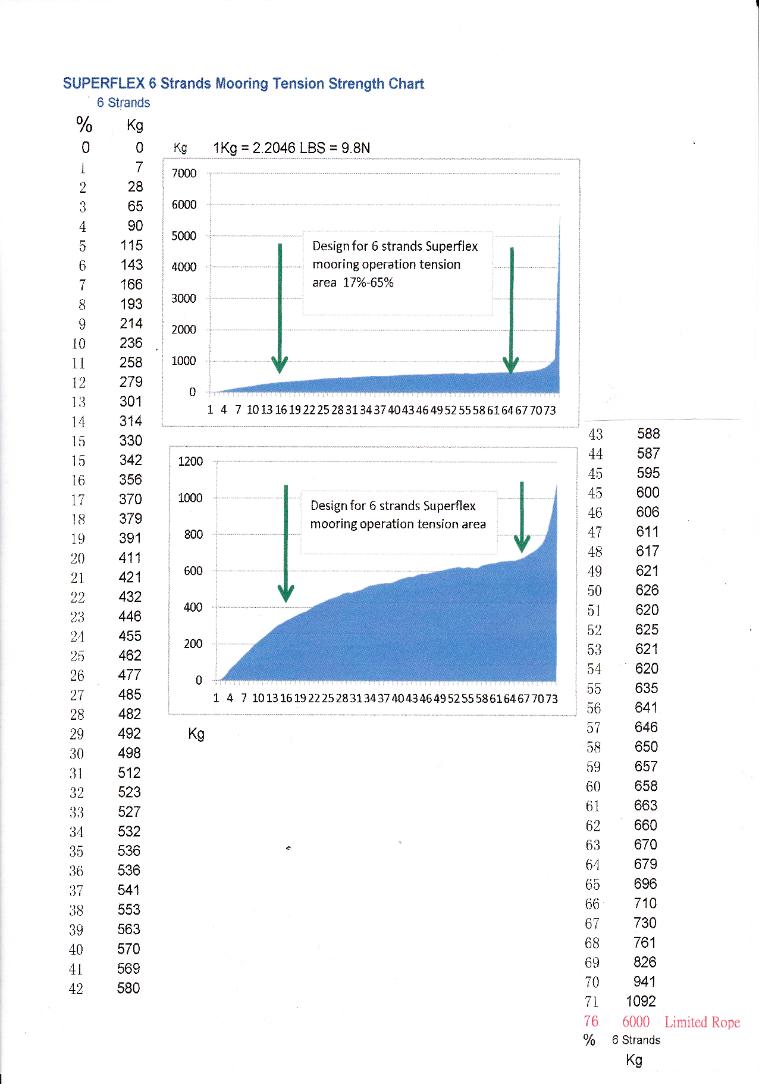

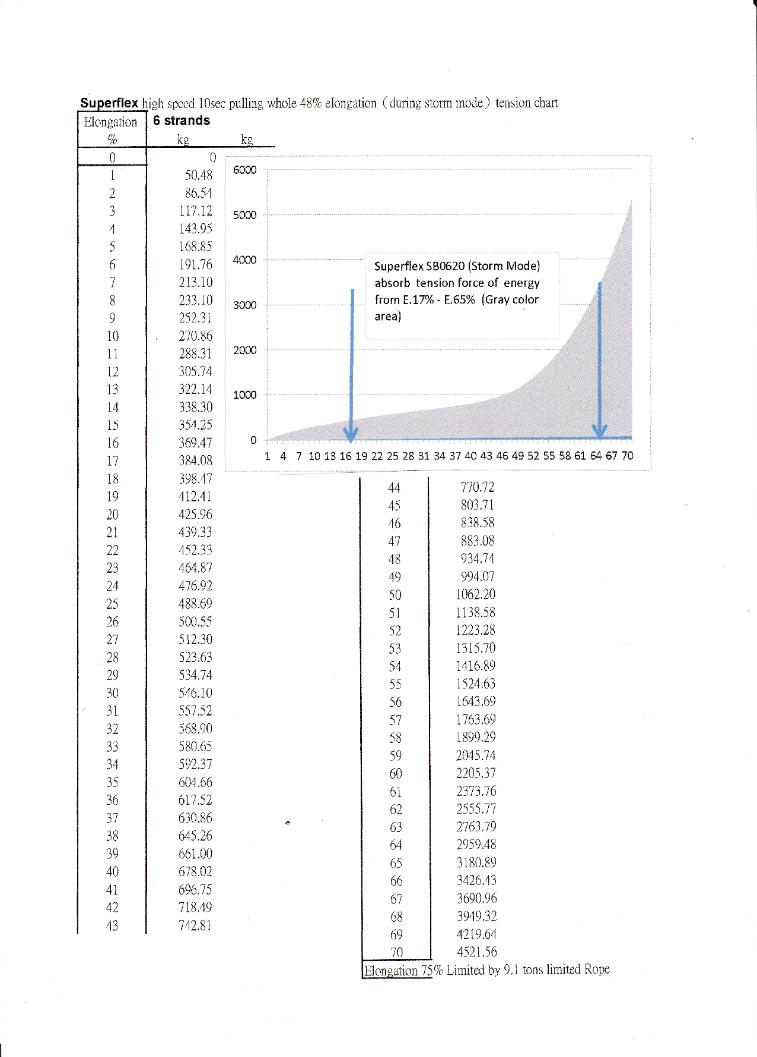

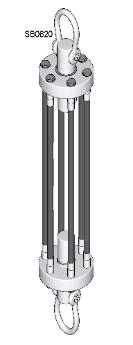

SB0620 Operation Mode tension strength
